RCF KXW 4-A Wide Coverage Dual 10 Powered Speaker

RCF KXW 4-A Wide Directivity Active Two-Way Speaker

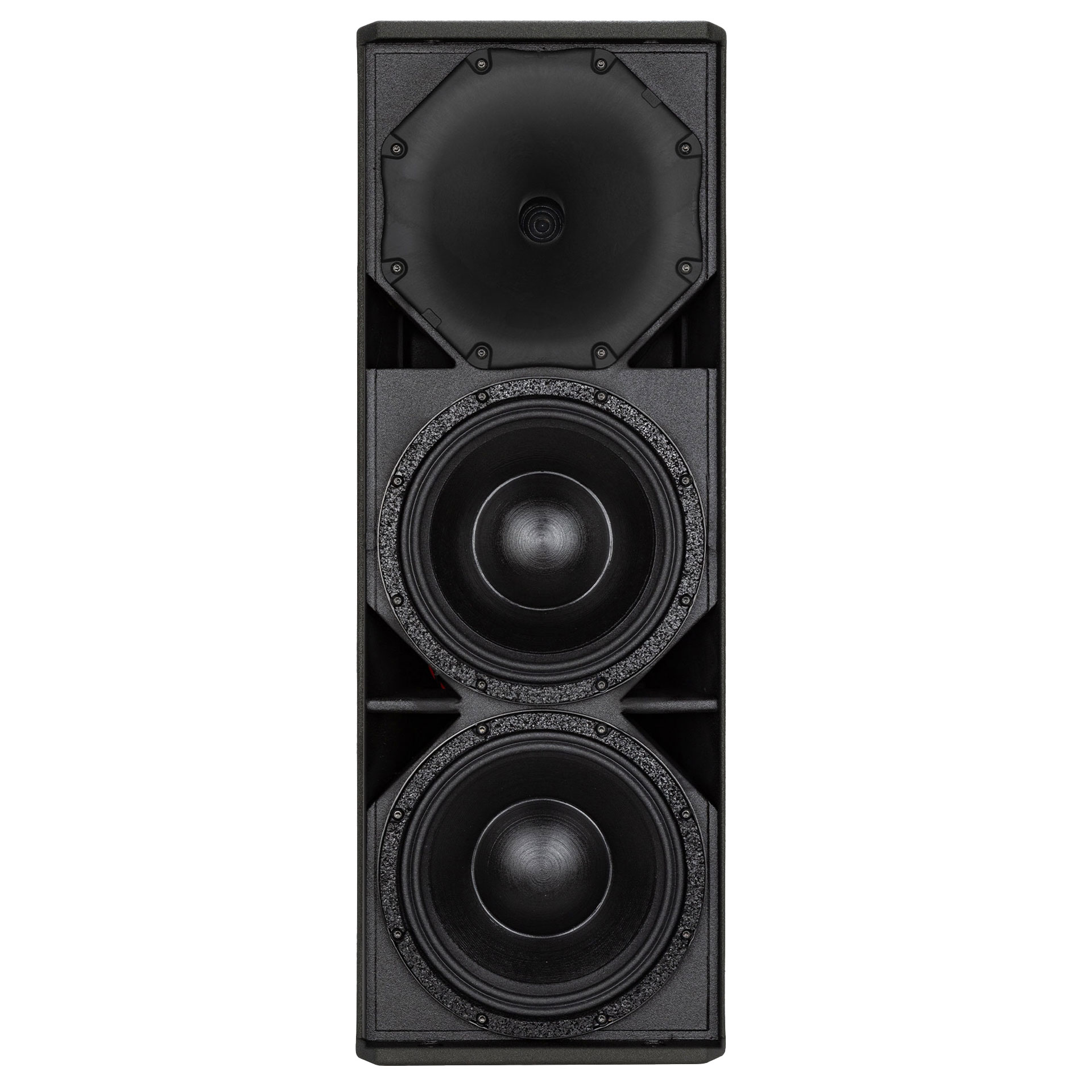

The RCF KXW 4-A is a compact, flexible, high-output active two-way speaker that couples 134 dB max SPL with a rotatable 100 x 50 degree waveguide for precise, repeatable coverage in both vertical and horizontal layouts. The low-frequency section uses dual 10 inch neodymium woofers with 3.0 inch voice coils in a bass-reflex design, matched to a neodymium compression driver with a 4.0 inch titanium dome on the dedicated horn for coherent, controlled directivity.

A 3200 W two-channel Class-D amplifier with high-end AD/DA conversion drives the system, while onboard DSP with FiRPHASE and Bass Motion Control (BMC) maintains clarity, phase coherence, and low-frequency linearity at any level. Integrated RDNet networked management gives engineers deep remote monitoring and control over each cabinet, and the weather-resistant Baltic birch plywood enclosure with polyurea coating, machined aluminum rear structure, steel rigging, and powerCON TRUE1 TOP mains connectors makes the KXW 4-A fully ready for touring, rental, and demanding fixed installations.

• 134 dB maximum SPL with wide, even coverage
• Rotatable 100 x 50 degree horn for vertical or horizontal deployment
• 2 x 10 inch neodymium woofers, 3.0 inch voice coils for high output in a slim footprint
• 4.0 inch titanium-dome neodymium compression driver for detail and headroom
• 3200 W Class-D amplification with high-end AD/DA and DSP
• FiRPHASE and Bass Motion Control processing for phase-accurate, extended response
• RDNet onboard for networked control, monitoring, and optimization
• Weatherproof Baltic birch cabinet with polyurea finish and tour-ready rigging and handles

Where the RCF KXW 4-A Excels

• Wide, controlled coverage for live sound The 100 x 50 degree waveguide with coherent directivity keeps vocals and instruments intelligible across the audience area, even in difficult acoustic spaces, and allows multiple KXW 4-A cabinets to work together without fighting each other.
• High output from a compact footprint Dual 10 inch hypervented woofers with large neodymium motors and a 4.0 inch titanium-dome compression driver deliver up to 134 dB max SPL, combining strong headroom with a slim, easy-to-deploy cabinet.
• Networked system control and monitoring Onboard RDNet provides deep access to DSP parameters and real-time feedback including transducer status, temperature, fan speed, VU meters, limiters, and more, so engineers can confidently manage small rigs or large distributed systems.
• Precision transducer design The high-frequency driver uses a high-flux neodymium magnet assembly, aluminum voice coil winding, optimized phase plug, and copper ring design for low distortion and high sensitivity, while the woofers feature hypervented cooling, M-roll surrounds, and a carefully engineered spider for linear, accurate low-frequency performance.

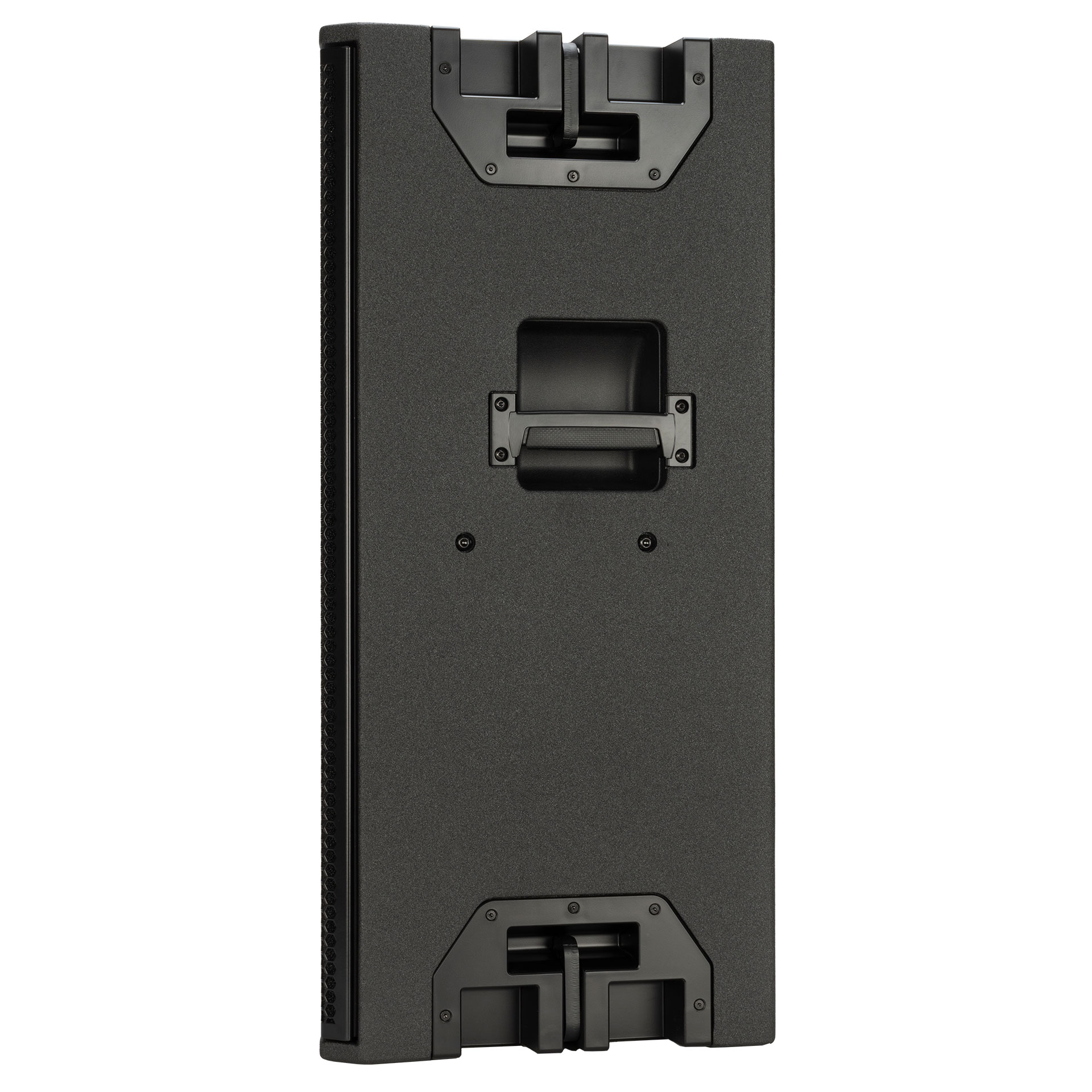

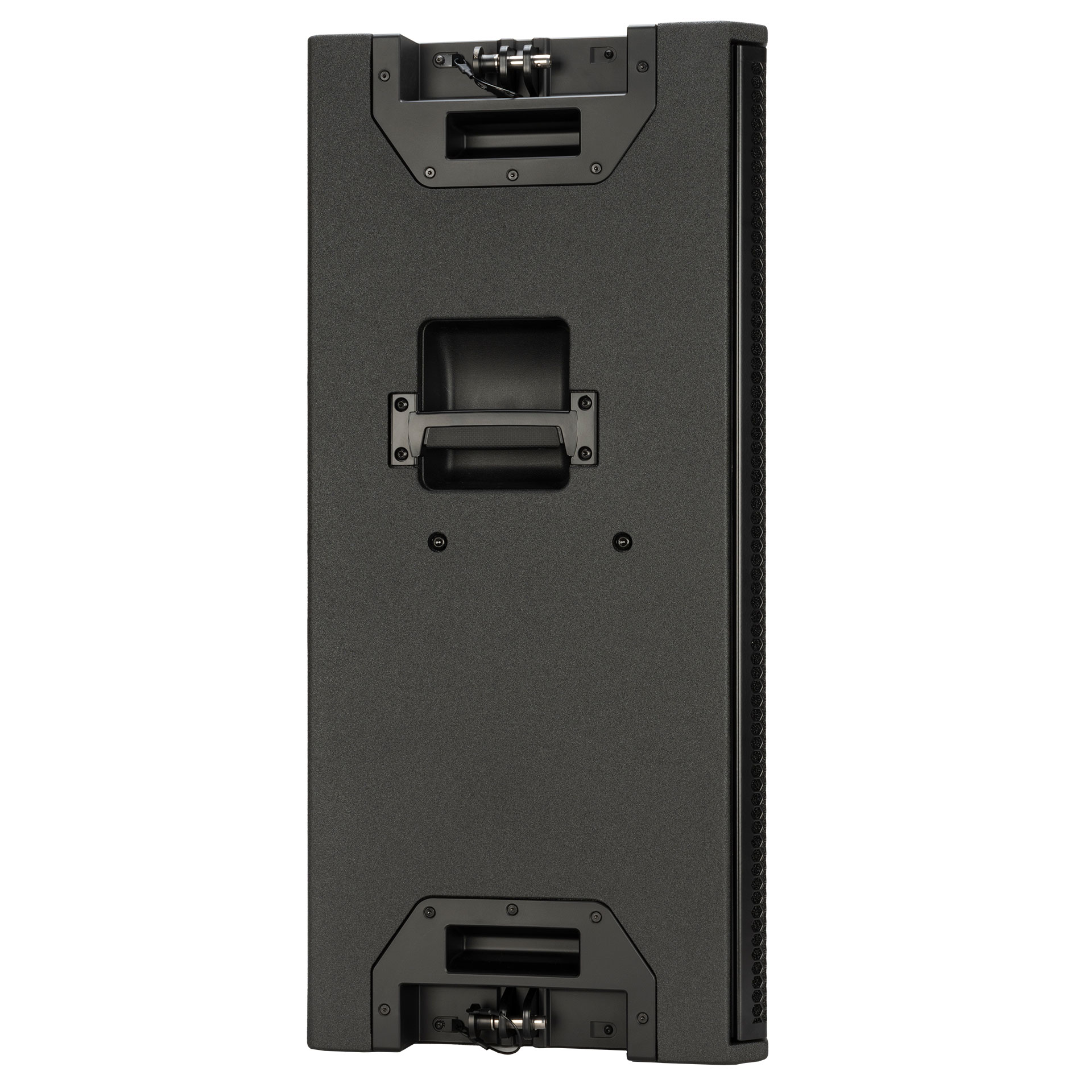

• Tour-ready durability and handling The Baltic birch plywood cabinet, polyurea weatherproof coating, machined aluminum heat-sink structure, structural steel rigging hardware, and die-cast aluminum handles with rubber grips are built for the realities of touring, rentals, and outdoor events.
• Flexible deployment options Array fittings, multiple threaded rigging points, a 35 mm pole-mount insert, and compact dimensions make it straightforward to fly, ground-stack, pole-mount, or integrate the KXW 4-A into fixed installations.

Control Modes and System Management

The RCF KXW 4-A combines powerful onboard DSP with RDNet networked management, giving you both quick local access and deep remote control for complex systems.

• Onboard DSP with FiRPHASE and BMC Internal processing optimizes phase response and frequency balance while Bass Motion Control manages woofer excursion, extending low-frequency performance without compromising stability or introducing unwanted phase shifts.
• High-end AD/DA conversion The premium conversion stage feeds the DSP engine to preserve detail and dynamics throughout the signal path.
• Front-end controls and presets The processor section provides Gain Reduction and limiter indication, delay and processing control, plus 8 selectable presets so you can adapt the KXW 4-A to different applications quickly.
• RDNet onboard With RDNet, each KXW 4-A becomes a networked node that can be monitored and controlled individually or as part of groups, including parameters like transducer status, fan speed, temperature, VU meters, and limiters.
• Audio connectivity The input/output section includes balanced and unbalanced signal support, with XLR input and XLR link output plus RDNet Ethercon ports for data, keeping both audio and control fully professional and tour-ready.
• Power connections Mains in and out are handled by powerCON TRUE1 TOP connectors, suitable for robust, reliable connection in mobile and installed environments.

Expanded Detail on the RCF KXW 4-A

Advanced Class-D Amplification and DSP Platform

The KXW 4-A uses high-powered Class-D amplifiers that are tailored to each transducer band, delivering clean power with efficient heat dissipation and low distortion. The design keeps power consumption under control while preserving dynamic impact. A next-generation DSP engine manages crossover, equalization, dynamics, and time alignment in real time, using high-end AD/DA conversion to maintain audio quality from input to output.

Coherent 100 x 50 Degree Directivity

The dedicated waveguide is engineered to provide a consistent 100 x 50 degree coverage pattern, enabling multiple KXW 4-A cabinets to work together as a system with excellent control of directional characteristics. In challenging rooms with reflective surfaces, the controlled directivity greatly improves intelligibility and helps keep energy off unwanted areas, making it easier to achieve a clean mix.

Precision High- and Low-Frequency Transducers

The high-frequency section uses a 4 inch pure titanium dome compression driver with a neodymium magnet assembly designed for high flux density, low distortion, and consistent response over time. The motor structure uses an ultralight edge-wound aluminum voice coil, an optimized phase plug, and a copper ring to enhance linearity and power handling. The low-frequency section employs two 10 inch hypervented neodymium woofers from the Precision Transducers line. These drivers feature a robust magnetic structure, a newly designed aluminum basket, and an advanced ventilation system that cools the voice coil, magnet assembly, and basket. The M-roll surround and carefully tuned spider deliver accurate cone control, high output, and low power compression.

Tour-Ready, Weather-Resistant Enclosure

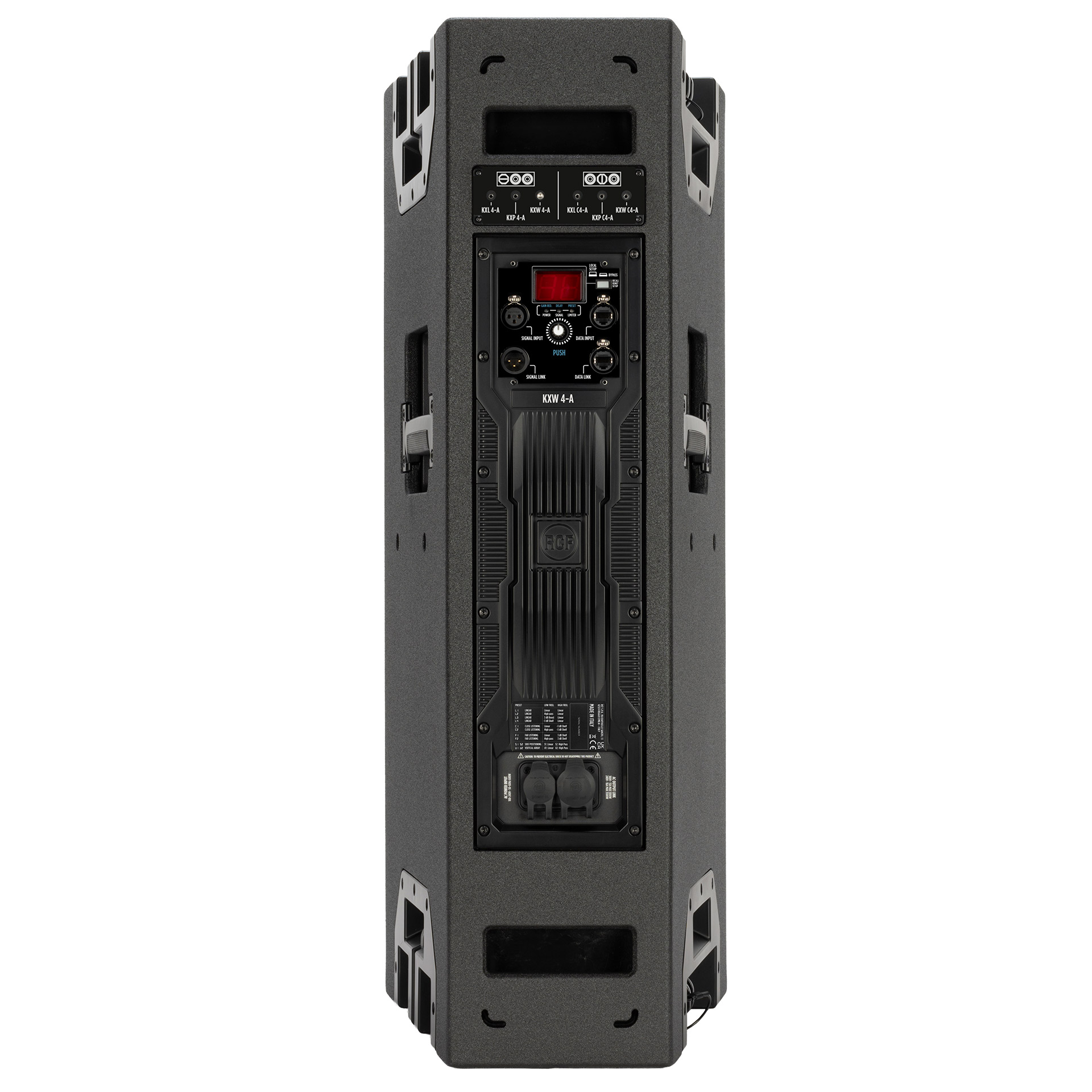

The cabinet is constructed from high-quality Baltic birch plywood, assembled with water-resistant adhesive and finished in a weatherproof polyurea coating. This combination provides strong protection against moisture, UV exposure, abrasion, and mechanical impact. A solid machined aluminum structure on the rear panel acts both as a heat sink for convection cooling and as an added reinforcement for the enclosure. The structural steel rigging hardware offers a high safety factor for flown arrays, while die-cast aluminum handles with ergonomic rubber grips make day-to-day handling more efficient. Waterproof powerCON TRUE1 TOP mains connectors further support use in demanding environments.

Bass Motion Control and FiRPHASE Processing

Bass Motion Control maps the woofer behavior in detail and applies a custom algorithm to manage over-excursion, letting the KXW 4-A reproduce very low frequencies more cleanly than traditional high-pass filter approaches. Instead of simply cutting low-frequency content to keep the woofer safe, BMC preserves frequency and phase characteristics while still protecting the driver. FiRPHASE processing uses advanced FIR filters to align phase and amplitude, improving imaging and delivering a coherent listening experience with minimal latency across the coverage area.

How to Deploy the RCF KXW 4-A in Your System

The RCF KXW 4-A is designed for flexible deployment in touring, rental, and fixed installation environments. Its compact form factor, rigging hardware, and rotatable horn make it equally at home as a main system element, sidefill, delay loudspeaker, or part of a distributed installation.

• Left/right mains or clustered systems Use KXW 4-A cabinets as primary left and right mains, or in clustered configurations, taking advantage of the 100 x 50 degree directivity and rotatable horn to match coverage to the audience area.

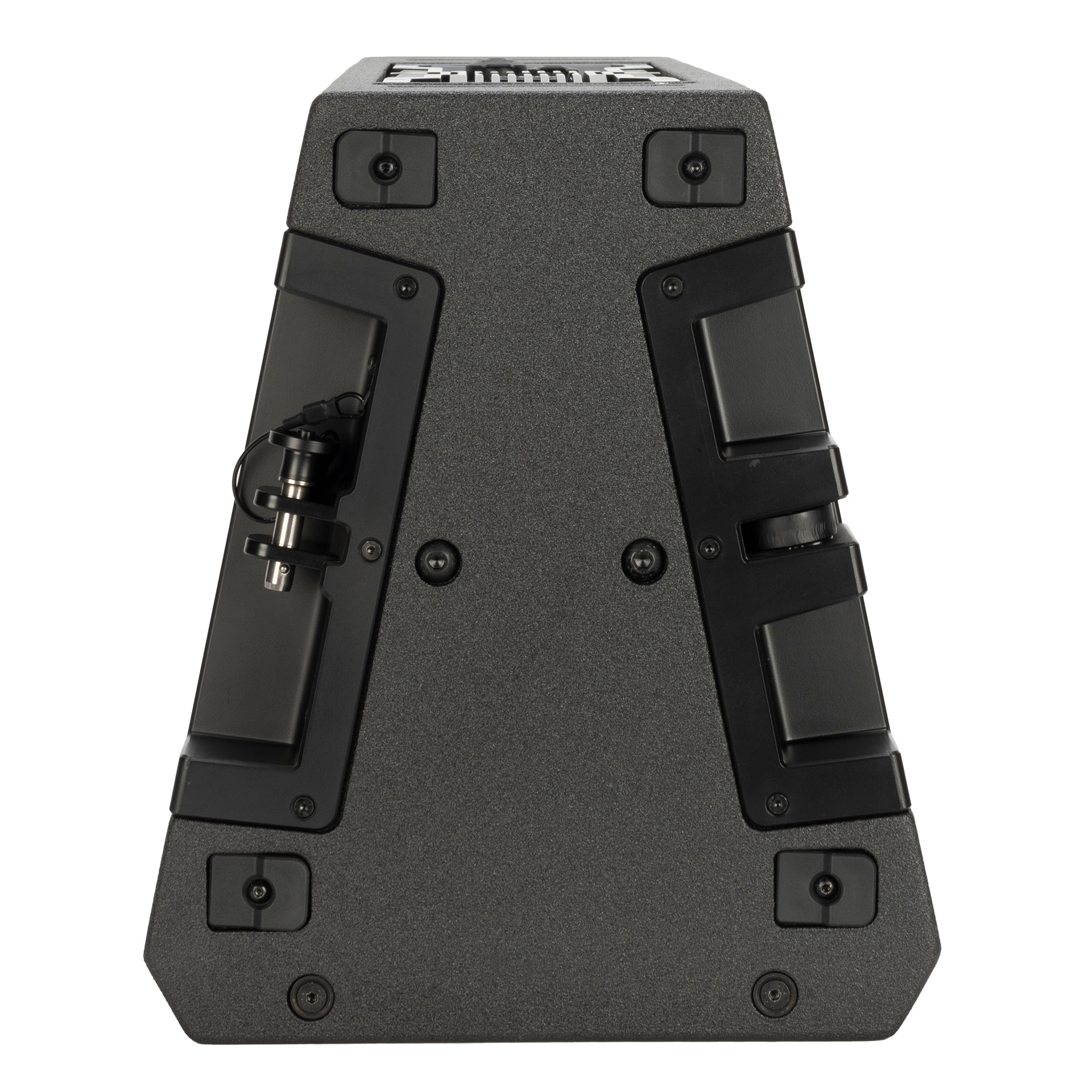

• Flown arrays and hanging configurations Integrate the KXW 4-A into flown systems using the array fittings and threaded rigging points (2 x M10 on the top and 2 x M8 on each side). The controlled directivity and high SPL capability make it suitable for flown arrays in concert, theater, and corporate setups.

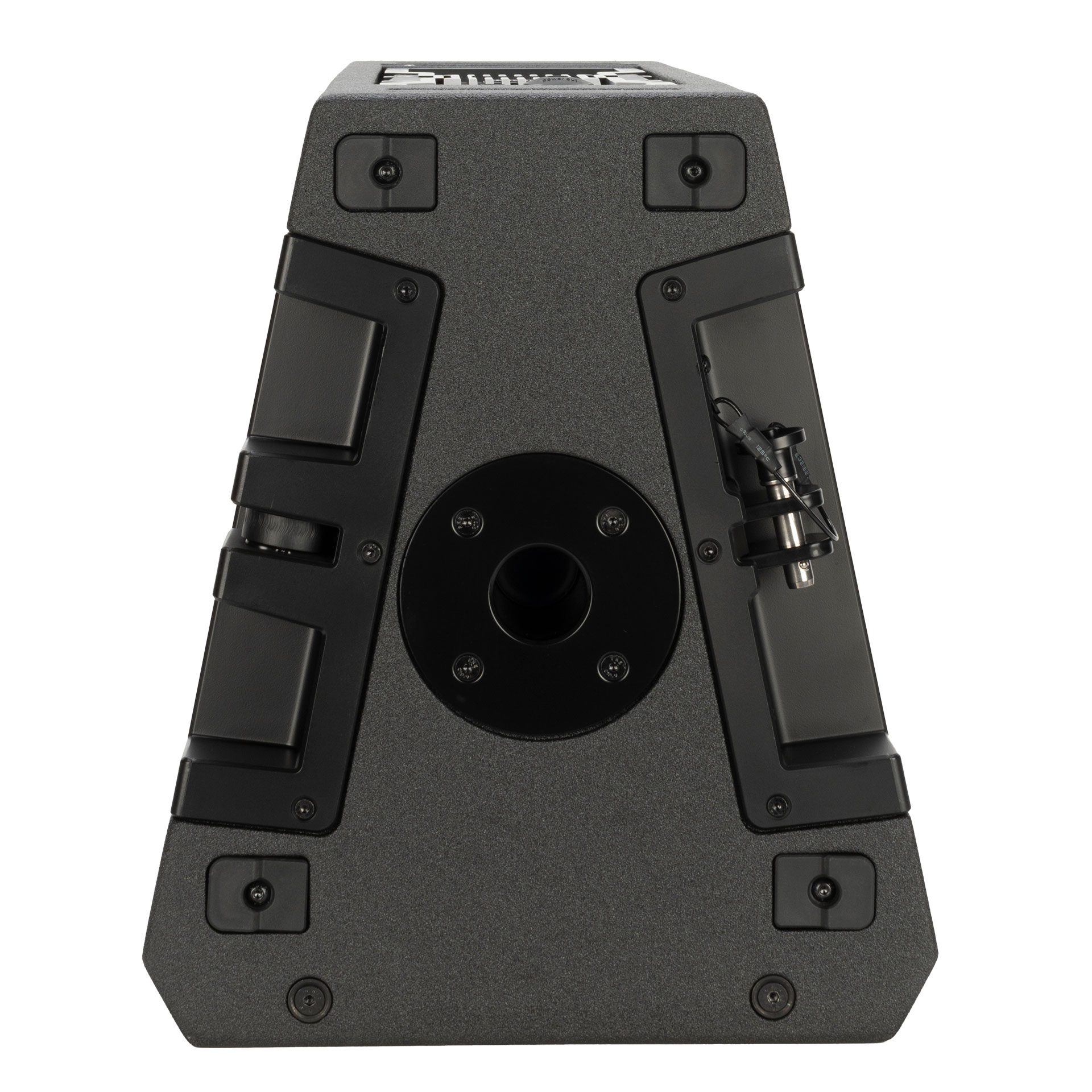

• Ground-stacked and pole-mounted setups The 35 mm pole-mount insert and compact footprint allow fast ground-stacked configurations on top of subwoofers or dedicated stands. This is ideal for mobile DJs, rental companies, and portable production rigs.
• Installed sound and distributed systems The weather-resistant Baltic birch cabinet, polyurea finish, and robust hardware support use in installed applications where long-term durability is essential, such as clubs, performance venues, houses of worship, and multipurpose spaces.
• RDNet integration for larger systems In networked setups, connect multiple KXW 4-A loudspeakers via RDNet Ethercon to manage groups, apply presets, align delays, and monitor status from a central interface, speeding up deployment and optimizing performance.
• Power and signal distribution Use the balanced XLR input and link output for audio distribution and the powerCON TRUE1 TOP in/out for reliable mains daisy-chaining in professional environments.

Why Choose the RCF KXW 4-A from AVMaxx

The RCF KXW 4-A is built for professionals who need wide, controlled coverage, high output, and network-ready control in a compact cabinet. For Chicago-area DJs, production companies, venues, and integrators, it offers a powerful combination of RCF engineering and deployment flexibility that is easy to scale from small events to complex systems.

• Modern coverage and SPL A 100 x 50 degree waveguide, 134 dB max SPL, and dual 10 inch neodymium woofers give you a capable main system element that can handle demanding live sound and DJ applications.
• RCF DSP platform with FiRPHASE and BMC The KX DSP platform, FiRPHASE, and Bass Motion Control work together to deliver clear, phase-coherent sound with extended low-frequency performance, so you get more usable output with better imaging.
• Networked management through RDNet RDNet integration means the KXW 4-A fits naturally into modern, networked audio workflows, with per-cabinet monitoring and system-wide control from a single software environment.
• Tour-ready build quality Baltic birch construction, polyurea coating, machined aluminum heatsink structure, and steel rigging hardware are designed for reliability in the field, from mobile DJ systems to production and rental inventories.
• AVMaxx support and system focus Working with AVMaxx, you can pair the KXW 4-A with matching RCF components, network control, and accessories, and get guidance on deployment strategies tailored to Chicago clubs, live music venues, houses of worship, and event production.

Frequently Asked Questions — RCF KXW 4-A

Ready to elevate your sound? Contact AVMaxx to integrate the RCF KXW 4-A into your DJ rig, club install, or touring system and experience professional power, clarity, and control built for Chicago’s live scene.
