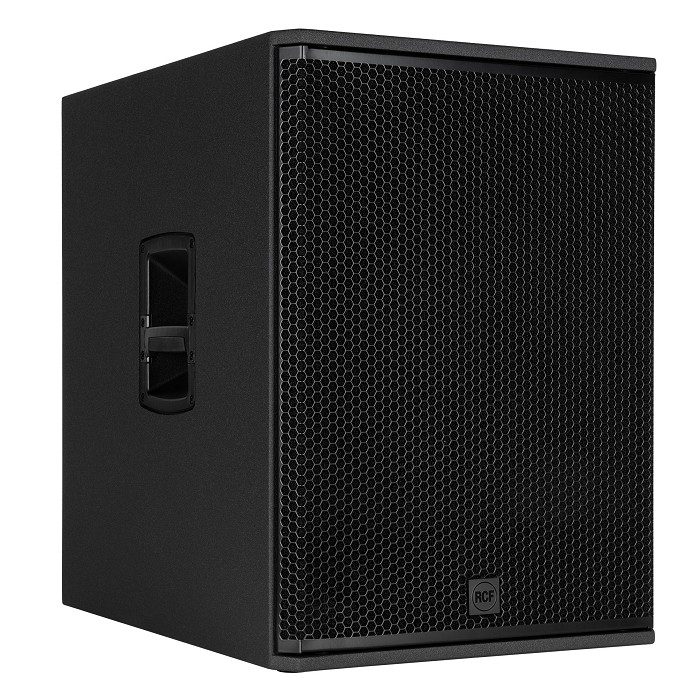

RCF SUB 18-AS 2200W Active 18 Bass Motion Control Subwoofer

RCF SUB 18-AS: Portable 2200W 18-Inch Bass Engine for Modern Rigs

The RCF SUB 18-AS is a professional active 18-inch subwoofer designed to bring serious low end to portable PA systems, live sound setups, and DJ rigs. A 2200 Watt Class-D amplifier drives a high-power 18-inch woofer with a 4.0-inch voice coil, delivering up to 135 dB max SPL across a wide 35 Hz – 400 Hz frequency response. It is voiced as the ideal low-frequency partner for 10-inch, 12-inch, and 15-inch tops when you need real punch and extension from a single cabinet footprint.

At the heart of the SUB 18-AS is an advanced RCF Precision Transducers woofer. Its magnetic circuit topology is engineered to maintain a consistent, high-integrity magnetic flux gap while keeping overall weight in check. The result is a transducer capable of high output with exceptionally low distortion, even when long-term SPL demands are high. T-pole optimization further minimizes flux modulation during typical voice coil movement, helping the sub stay tight and controlled at any volume.

RCF’s Bass Motion Control (BMC) algorithm replaces the usual high-pass filter with a more intelligent approach to excursion management. By mapping the woofer’s dynamic behavior and limiting only over-excursions, BMC gives the SUB 18-AS extended low-frequency reach without compromising stability or phase response. You get deeper bass and better sound integrity from a cabinet that still behaves predictably under stress.

The connection panel offers mono/stereo combo XLR/TRS inputs, an XLR stereo link, and XLR crossover outputs for easy integration with full-range boxes. Rear-panel controls include volume, polarity, and low-pass filter frequency selection, so you can quickly dial in the handoff between sub and tops. A rugged Baltic birch plywood cabinet with polyurea coating, powder-coated steel grille, and side handles keeps the SUB 18-AS ready for fast load-ins and tight stage plots.

For Chicago DJs, small to mid-sized venues, houses of worship, and mobile production teams, the SUB 18-AS hits the sweet spot between power, portability, and control—delivering reliable, musical bass that keeps crowds engaged night after night.

Real-world applications and sound roles:

• Portable subwoofer for live bands and small production companies needing strong single- or dual-sub coverage.
• High-impact bass for Chicago mobile DJs working weddings, lounges, and mid-sized clubs.
• Low-frequency extension for 10-inch, 12-inch, and 15-inch powered tops in bar, church, and corporate AV systems.
• Stackable subs for scalable rigs that grow from intimate rooms to larger events with multiple cabinets.
• Rental inventory workhorse that balances performance, durability, and manageable size for day-to-day use.

Where the RCF SUB 18-AS Active Subwoofer Excels

• Balanced Power and Portability: A 2200W Class-D amplifier and 18-inch woofer deliver up to 135 dB SPL while keeping cabinet size and weight manageable for one- or two-person crews.
• Extended Frequency Range: The 35 Hz – 400 Hz response gives you both deep sub-bass and strong upper-bass support around the crossover region.
• Bass Motion Control: RCF’s BMC algorithm manages woofer excursion without relying on a traditional high-pass filter, preserving phase behavior and improving low-frequency integrity.
• High-Power 18-Inch Transducer: A 4.0-inch voice coil and optimized magnet design keep distortion low and output high, even over long, loud sets.
• Flexible I/O and Routing: Mono/stereo combo inputs, stereo link, and XLR crossover outputs simplify integration with existing mixers and powered tops.
• Simple Onboard Controls: Rear-panel volume, polarity, and low-pass frequency adjustments make it easy to tune the sub to different rooms and stacks.
• Tour-Grade Enclosure: Baltic birch plywood with a polyurea coating and steel grille is ready for the rigors of mobile work and rental fleets.
• Stackable, Pole-Mountable Design: An M20 thread and ergonomic side handles support vertical stacking and pole-mount configurations with a wide range of tops.
• Small- to Mid-Venue Specialist: Perfectly sized for small theaters, event spaces, and Chicago-style bar venues where clean, impactful bass is essential.

Control Modes for the RCF SUB 18-AS

The SUB 18-AS includes a focused set of controls on the rear panel so engineers and DJs can quickly match the subwoofer to different tops and room conditions without external processing. Everything is laid out for fast, practical use in the field.

• Volume Control: Adjusts the overall sub level to match different tops, room sizes, and program material without rebalancing the entire system at the mixer.
• Polarity Switch: The polarity control helps align the SUB 18-AS with nearby mains or additional subs, especially when speakers are placed off-axis or at varying distances.
• Low-Pass Filter Frequency Selection: Onboard low-pass control lets you tailor the crossover region so the sub blends smoothly with 10-inch, 12-inch, or 15-inch loudspeakers.
• Bass Motion Control: RCF’s BMC algorithm works in the background to map woofer motion and limit only over-excursion, protecting the driver while maintaining extended bass response.
• Soft Limiter and Thermal Protection: Built-in protection keeps the amplifier and transducer safe, preserving the character of the input signal even during demanding shows.

Combined with the mono/stereo combo XLR/TRS inputs, stereo link, and crossover outputs, these controls give you straightforward, repeatable ways to tune the SUB 18-AS for live bands, DJs, and corporate events.

Deep Bass Control, Smart Power, and Road-Ready Construction

High-Power 18-Inch Transducer with Precision Magnet Topology

The 18-inch woofer inside the SUB 18-AS is the result of RCF Precision Transducers engineering. Its 4.0-inch voice coil magnetic circuit is designed to maintain a consistent, high-integrity flux gap while keeping the overall driver weight practical for portable systems. The T-pole optimization minimizes flux modulation as the voice coil moves, which keeps the subwoofer sounding tight and accurate even during long, high-level shows.

For engineers and DJs, that means bass lines, kick drums, and low synths that stay defined instead of turning into a blur when the system is pushed.

Bass Motion Control for Extended, Stable Low End

Bass Motion Control (BMC) is RCF’s forward-thinking approach to woofer excursion management. Rather than using a conventional high-pass filter that can alter phase and reduce low-end extension, BMC maps the dynamic behavior of the woofer and creates a custom algorithm that limits only over-excursions. The transducer is free to reproduce the lowest audible frequencies while remaining stable and controlled.

The benefit is simple: the SUB 18-AS delivers deeper, more consistent bass at any level, while preserving the clarity and timing that make a mix feel powerful and musical.

2200W Class-D Amplification with Fan-Less Cooling

The 2200W Class-D amplifier in the SUB 18-AS is built for efficiency and reliability. It manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and low heat loss. Because the amplifier is so efficient, it is mounted to a solid aluminum heatsink on the rear of the cabinet and cooled by convection—there is no fan, no moving parts, and no fan noise.

A low-distortion stereo input circuit with crossover and an advanced safety limiter keeps the signal clean from soft background music to full-throttle dance sets. Compliance with EN62368-1 and a Switch Mode Power Supply add safety and portability to the overall package.

Baltic Birch Cabinetry Built for Touring and Rentals

The SUB 18-AS enclosure is crafted from Baltic birch plywood and finished with a black polyurea coating that resists scratches and wear. The subs are stackable and light enough for small crews to manage, aided by two side handles that support safe lifting and transport. An M20 pole mount on the top (and versatile mounting options) allows the box to be used in various configurations with compatible tops.

The powder-coated steel front grille includes a special transparent-to-sound foam backing to protect the woofer from dust while keeping the response smooth. This combination of materials and hardware makes the SUB 18-AS well-suited to mobile rigs, rental fleets, and busy stages where gear is constantly moving.

How to Deploy the RCF SUB 18-AS in the Field

The SUB 18-AS is designed to drop into a wide range of portable systems without complex processing. A few deliberate choices around placement, crossover, and gain structure will help you get the most out of the cabinet in everyday shows.

• Match the sub to your tops: Pair the SUB 18-AS with 10-inch, 12-inch, or 15-inch loudspeakers as intended. Use the low-pass frequency control to set a comfortable crossover region that suits the tops you are running.
• Position for even coverage: Start by placing subs on solid, level ground in front of or beneath the main speakers. For small rooms, keep them close to the center to avoid uneven hot spots.
• Use polarity control for alignment: If bass feels thin around the crossover, flip the polarity switch on the sub and choose the setting that gives stronger, more even low end at audience positions.
• Set appropriate levels: Use the rear volume control to balance the SUB 18-AS with your tops. Aim for a solid low-end foundation without overpowering vocals and instruments.
• Leverage BMC at any volume: Trust the Bass Motion Control algorithm to maintain woofer stability as you turn up. The sub will extend low without needing a separate high-pass filter.
• Plan for growth: As your shows grow, add more SUB 18-AS cabinets and stack or spread them as needed, keeping routing simple with the onboard combo inputs and XLR link/crossover outputs.

Following these steps helps the SUB 18-AS deliver consistent, musical bass in small clubs, event halls, houses of worship, and Chicago-style mobile setups.

Deploy the RCF SUB 18-AS as your go-to portable subwoofer and you gain a compact, controllable low-frequency engine that keeps every mix grounded, from club gigs to corporate events.

Why Choose the RCF SUB 18-AS from AVMaxx:

AVMaxx understands what it takes to build portable systems that work week in and week out—especially for Chicago DJs, live bands, and event companies who need strong bass without hauling oversized rigs. The RCF SUB 18-AS fits perfectly into that world, combining 2200W of power, Bass Motion Control, and a rugged Baltic birch cabinet in a format that is easy to move and easy to tune.

• Practical system design help: We can show you how to pair the SUB 18-AS with RCF or mixed-brand tops, choosing crossover points and placements that suit your actual rooms.
• Chicago-focused experience: Our recommendations factor in tight load-ins, busy weekend schedules, and multi-use venues common throughout the Chicago area.
• Rental and install insight: Whether you are building a portable rig, a house system, or a small rental inventory, AVMaxx helps you size the number of subs and layout to your calendar, not just a spec sheet.
• Support after purchase: From wiring questions to basic alignment tips, we stay available so your SUB 18-AS cabinets continue to perform as your work evolves.

AVMaxx is your partner for RCF low-frequency solutions—field-aware guidance, dependable support, and system designs that help Chicago DJs and event pros get the most from every SUB 18-AS they roll out.
