ProX XTP-GSBPACK3: Ground-Support Truss Tower Kit for Big-Stage Roofs

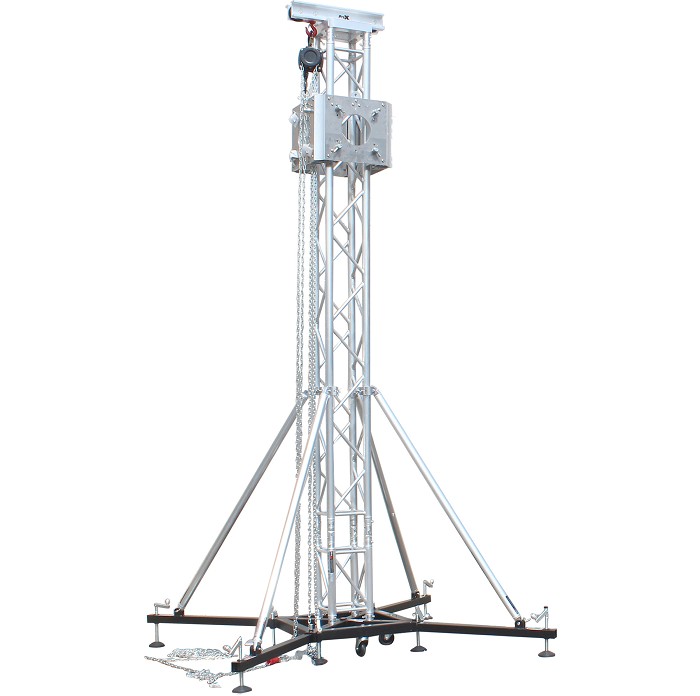

Build a professional, load-ready truss tower—fast. The ProX XTP-GSBPACK3 packages the core hardware required to erect one complete ground-support tower leg for mid to heavy-grade stage roofs and lighting grids. You get the wheeled base with leveling jacks and outriggers, a 4-way sleeve block/junction, hinge set for safe tilting, top rigging section with I-beam/chain pulley interface, and a 3.28 ft (1 m) F34 truss segment—all built around F34 geometry for straightforward expansion.
Field-proven construction: EN-AW T6 6082 aluminum and welded steel, tolerance-free conical connectors, and TUV-certified welding deliver tight joints and repeatable assembly. XT-GSBMK3 adds extendable outriggers for stability, XT-BLOCK-MK2 rides cleanly up the vertical, XT-HINGEX4 enables controlled tilt, and XT-TOPCM interfaces with a manual chain hoist or motorized lift. The included XT-SQ328 segment locks into your F34 inventory for scalable height and span.
Compatibility & capacity: Industry-standard F34 dimensions support broad cross-compatibility with many F34 systems using conical connectors. Welding is TUV certified. Per-unit capacity: 1 ton (2,000 lb) when deployed within proper engineering limits. Always consult a qualified engineer for complex roofs and verify loads against the XT-SQ Truss Loading Chart.
- Mobile DJ stage roofs and lighting trees in Chicago clubs, weddings, and outdoor festivals
- Touring roof support legs for LED walls, PA hangs, and downstage trusses
- Expo towers, retail displays, and permanent nightclub installs using F34
- Hybrid AV rigs: line-array side legs, delay-tower lighting, and scenic elements
Where the ProX XTP-GSBPACK3 Tower Package Excels
- All-in-one tower leg: Base, sleeve block, hinges, top, outriggers, and F34 segment—no piecemeal sourcing.
- Fast F34 workflow: Conical connectors deliver rigid joins and quick pinning for touring or install work.
- Certified build: EN-AW T6 6082 aluminum with TUV-certified welding for reliability on critical lifts.
- Controlled tilt-up: Hinge set supports safe raise/lower with a manual chain hoist or motor.
- Stability outdoors: Wheeled base with leveling jacks and four outriggers increases footprint on uneven ground.
- Scalable height & span: Add F34 segments and matched components to hit target trim and roof width.
- Cross-compatibility: Standard F34 dimensions integrate with many F34 systems using conical connectors.
- DJ & festival ready: Built for quick Chicago load-ins—ideal for mobile DJ roofs and seasonal outdoor stages.
Control Modes for ProX XTP-GSBPACK3
Mechanical system (non-powered): This package has no electronics. Operation is via rigging interfaces and technique:
- Sleeve travel: XT-BLOCK-MK2 rides the F34 vertical to carry the working truss during lift and lower.
- Hinge operation: XT-HINGEX4 enables a controlled tilt-up/tilt-down sequence.
- Top interface: XT-TOPCM provides an I-beam mount with chain pulley wheels for a manual hoist or compatible motor.
- Leveling & bracing: XT-GSBMK3 with extending legs and four XT-GSOUTS3 outriggers establishes a stable footprint.
Safety: Verify loads, spans, and attachments with a qualified engineer and the official loading chart before deployment.
Certified Build Quality & Materials
EN-AW T6 6082 aluminum and welded steel underpin the tower’s strength-to-weight performance. TUV-certified welding and tolerance-free conical connectors help maintain alignment under load and during transport.
F34 Geometry & Cross-Compatibility
XT-SQ328 (3.28 ft / 1 m) F34, 2 mm wall, locks into standard F34 builds using conical connectors, enabling integration with additional ProX or other F34-compatible components.
Package Anatomy — What You Get
- XT-GSBMK3: Universal ground-support base on wheels with leveling jacks.
- XT-GSOUTS3 (4): 3 ft outrigger support braces with clamps.
- XT-BLOCK-MK2: Sleeve block (4-way junction) for F34 truss.
- XT-HINGEX4: Pack of four hinge blocks for controlled tilt-up/tilt-down.
- XT-TOPCM: Top section with I-beam mount and chain pulley wheels.
- XT-SQ328: 3.28 ft F34 square truss segment, 2 mm wall.
Load Strategy & Deployment Notes
Per-unit capacity is 1 ton (2,000 lb) when configured and engineered correctly. Balance lighting, LED, soft goods, and audio across matched legs and cross-members. Engineer sign-off is mandatory for complex roofs.
Scaling for DJ & Festival Stages
Add F34 segments to increase trim height; pair multiple XTP-GSBPACK3 legs with compatible spans to create full roofs for mobile DJ rigs, club installs, and outdoor festivals.
Transport & LTL Planning
Suggested shipping method: LTL. Use the listed exterior and shipping dimensions/weights; e.g., 1 set 285 lb (48×40×60), 2 sets 505 lb (48×40×60).
How to Deploy the ProX XTP-GSBPACK3
- Stage the base: Position XT-GSBMK3, extend leveling jacks, and attach four XT-GSOUTS3 outriggers. Confirm a stable surface.
- Start the vertical: Secure XT-SQ328 to the base; seat all pins.
- Install the sleeve: Fit XT-BLOCK-MK2 on the vertical and confirm smooth travel.
- Fit hinges: Mount XT-HINGEX4 at the planned hinge point for controlled tilt.
- Attach the top: Mount XT-TOPCM and connect a manual chain hoist or compatible motor.
- Rig the working truss/load: Connect the horizontal working truss to the sleeve; distribute fixtures and apply safeties.
- Tilt and lift: Execute a controlled tilt-up; raise to trim, checking pins, level, and outriggers at each pause.
- Final verification: Recheck fasteners, confirm load within charted limits, and secure lines as required.
Always consult a qualified engineer and follow the official loading chart before showtime.
Why Choose AVMaxx for ProX XTP-GSBPACK3
- Real-world guidance: We spec and support F34 tower legs for Chicago DJs, clubs, and production houses.
- Exact data: Every figure above reflects current ProX information you provided—nothing assumed.
- Rig-matched add-ons: Need more height or span? We’ll align additional F34 segments and hardware to your payload.
- Touring or install: From mobile events to permanent venues, we match hardware, workflow, and logistics to your schedule.
Frequently Asked Questions — ProX XTP-GSBPACK3
What components are included?
XT-TOPCM, XT-BLOCK-MK2, XT-HINGEX4 (x4), XT-GSBMK3 base, XT-GSOUTS3 outriggers (x4), and XT-SQ328 (F34, 2 mm wall).
Is the welding certified?
Yes. ProX specifies TUV-certified aluminum/steel welding.
How much can a unit support?
Listed capacity is 1 ton (2,000 lb) when engineered and deployed correctly. Always use the official loading chart.
Is it suitable for DJ roofs and mobile stages?
Yes. It’s designed for stage roofing and lighting support, widely used by mobile DJs, clubs, and festival stages using F34.
What shipping plan should I use?
Plan for LTL. Reference the provided box dimensions/weights and pallet guidance (1 set 285 lb 48×40×60; 2 sets 505 lb 48×40×60).
Tell us your trim, span, and payload—our team will configure matching legs and F34 segments for a safe, scalable, show-ready roof.
