The ProX XS-MH12RX2W is a moving-head lighting road case engineered to protect two ADJ Vizi Beam 12RX fixtures (and similar-sized heads). Built from Gig-Ready 3/8" plywood with reinforced steel ball corners, recessed spring-action handles, and industrial recessed butterfly twist-lock latches (padlock-ready), it delivers tour-grade security. A high-density foam interior cradles each head, while the Signature Honeycomb Digital™ laminated exterior helps resist minor to mild scratches. For fast load-ins, the case rides on four heavy-duty 4" rubber casters (two locking).

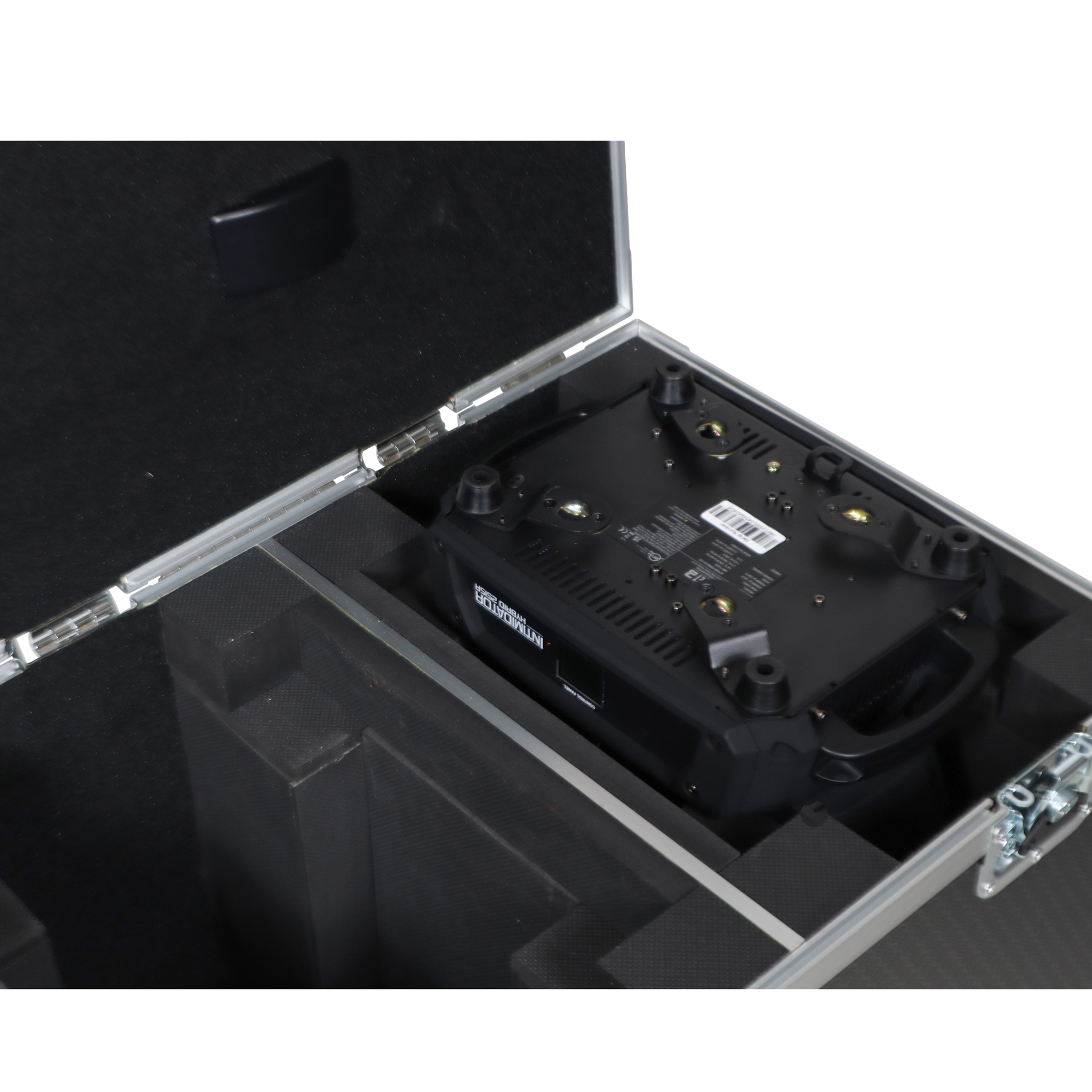

High-density foam support & casing isolates each moving head and protects yokes and housings during transport.
The Signature Honeycomb Digital™ laminate uses hexagon grids on all faces to help minimize visible wear from daily use.
Industrial recessed butterfly latches (padlock-ready), recessed spring-action handles, and steel ball corners are anchored with dual rivets for durability.

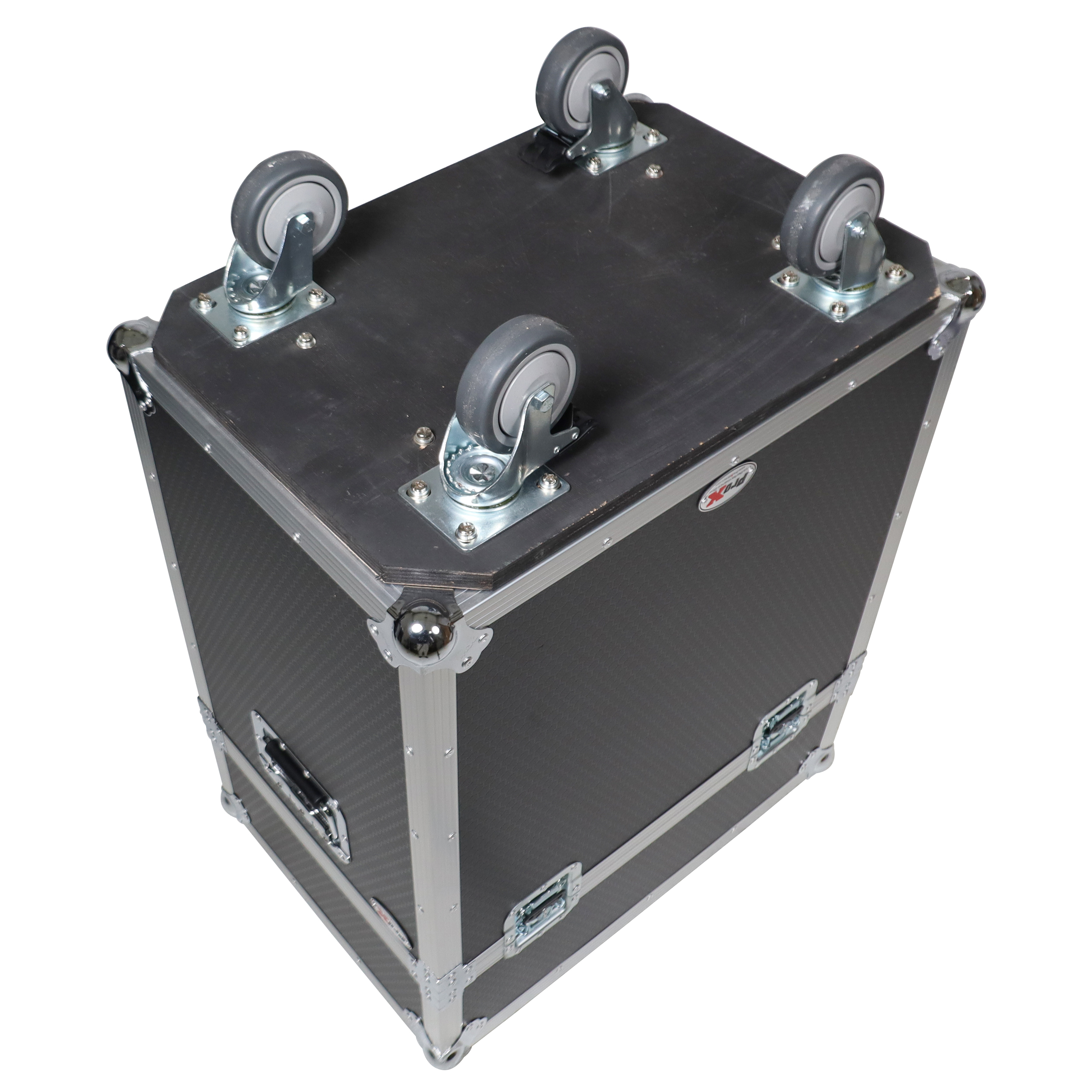

4× 4" heavy-duty rubber casters (two locking) speed venue turns and stabilize the case during load and patch.

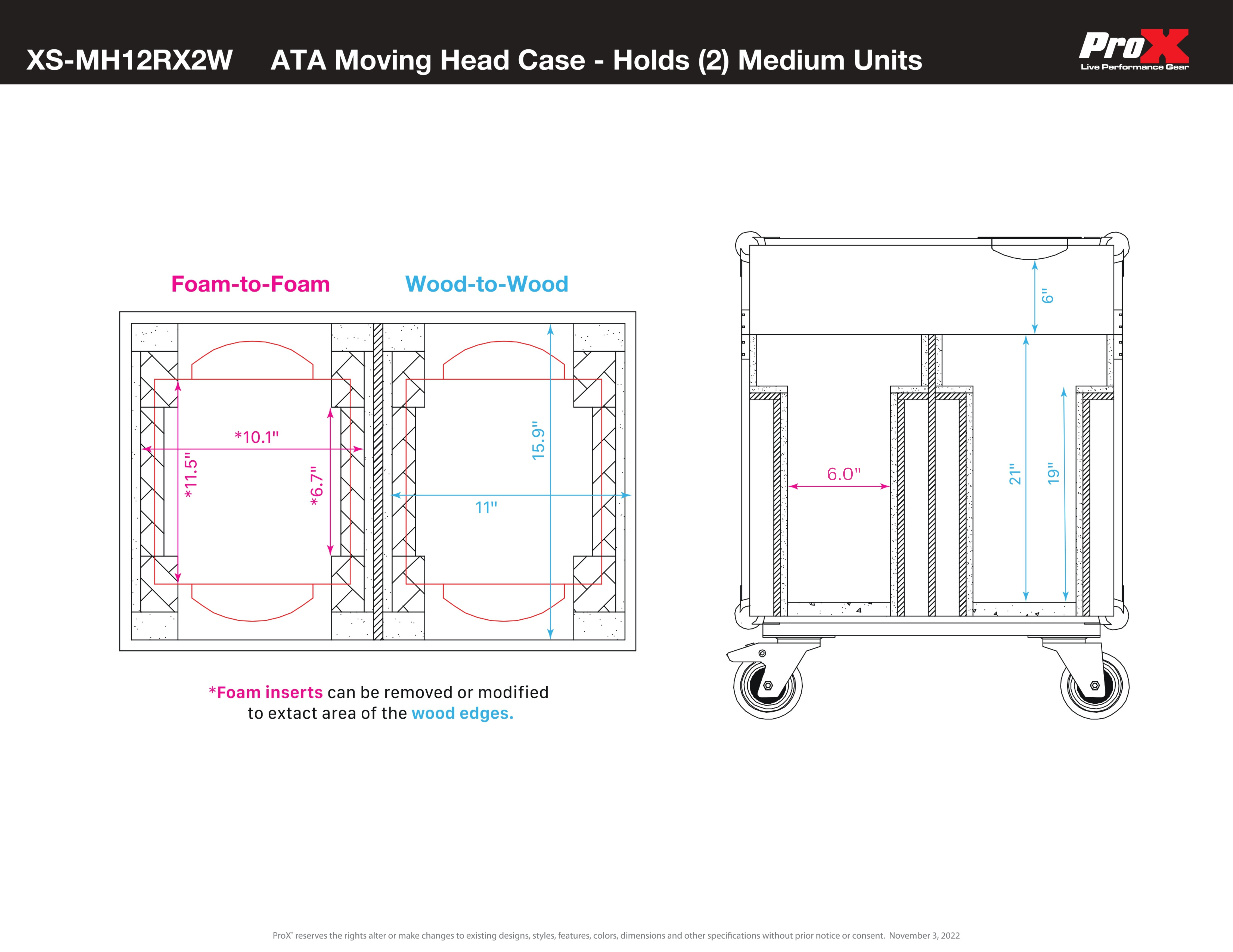

Interior (cavities): Top Dims 21.00"H × 10.10"W × 11.50"L + 6.00" lid; Inner Dims 19.00"H × 6.00"W × 6.70"L + 6.00" lid. Exterior: 30.00"H × 17.00"W × 24.50"L; 65.00 lbs.
Wheel the case to position and lock the two braking casters. Release the recessed butterfly latches and lift the lid. Place each Vizi Beam 12RX into its foam cavity, ensuring the yoke and base sit flush. Coil power/DMX and park between cavities if space allows. Close the lid, engage latches, release caster locks, and roll to the rigging position. Reverse the process to strike.
Lock casters before loading/unloading, and always latch fully before moving.
We present only the manufacturer-provided details—materials, dimensions, hardware, and mobility—so lighting techs can spec a two-head Vizi Beam 12RX case with confidence. Our focus is practical deployment: foam protection, padlock-ready latches, and 4" casters that streamline show days.
AVMaxx is your partner for ProX solutions—field-aware guidance, dependable support, and builds that keep tours and installs moving.
Two ADJ Vizi Beam 12RX moving heads (and similar-sized units).
Yes. The case includes four 4" rubber casters; two are locking.
Top Dims: 21.00"H × 10.10"W × 11.50"L + 6.00" lid. Inner Dims: 19.00"H × 6.00"W × 6.70"L + 6.00" lid.
Yes. Industrial recessed butterfly latches are padlock-ready.
All foam padding is made from 85% recycled materials; durable hard rubber foams contain 70% recycled content (80% bottles / 20% post-industrial).
Select a row below to filter reviews.
5.0
(1) ProX XS-MH12RX2W Moving Head Lighting Road Case
(4) 4" Heavy-Duty Tough Rubber Casters (two locking, pre-installed)
Any third-party fixtures shown are for display only and are not included.
