Compact Shock-Isolated 6U Effects Rack That Protects DSP, RF, and Control Gear
Keep sensitive electronics safe between venues. The ProX T-6RSP14 is a 6U, ATA-style shockproof rack featuring a floating, shock-isolated 19" inner frame and a 14" rail-to-rail depth—ideal for processors, wireless receivers, and compact amplifiers. Front and rear removable lids speed setup and service, while recessed hardware and reinforced corners deliver road-ready durability for mobile DJs, club techs, and live sound crews.
Purpose-built for 19" components: DSP engines, effects units, RF/IEM receivers, and power modules mount securely in the shock-mounted frame so bumps and vibration are buffered from dock to booth without sacrificing access or airflow.
Real-World Applications & Sound Roles:
- Mobile DJ effects/DSP hub: Protect crossovers and processors that dislike shock.
- RF utility rack: Isolate wireless mic/IEM receivers from cart and stage vibration.
- Install service kit: Pop lids, patch fast, then re-latch without disturbing wiring.
- FOH support: Safeguard analyzers and record interfaces in a compact footprint.
Where This Rack Excels
- Shock Isolation: Floating inner frame reduces vibration transfer to delicate circuitry.
- Compact Depth: 14" rail-to-rail fits processors and RF gear while saving space.
- Service Speed: Front/rear lids provide 360° access for patching and quick checks.
- Road-Ready Hardware: Recessed handles, twist latches, reinforced corners survive hauls.
- Clean Cabling: Depth and lid design help clear right-angle power/network connectors.
- DJ-Centric Footprint: Slim 6U format integrates neatly with mobile DJ carts and booths.
Shock Isolation System of the T-6RSP14
The inner 19" rack is suspended within the outer ATA shell via engineered shock mounts that tame impacts from curbs, elevators, and dock plates. This helps protect high-density PCBs, drive bays, and RF front-ends from transient shock events that can cause intermittent faults.
Construction & Hardware

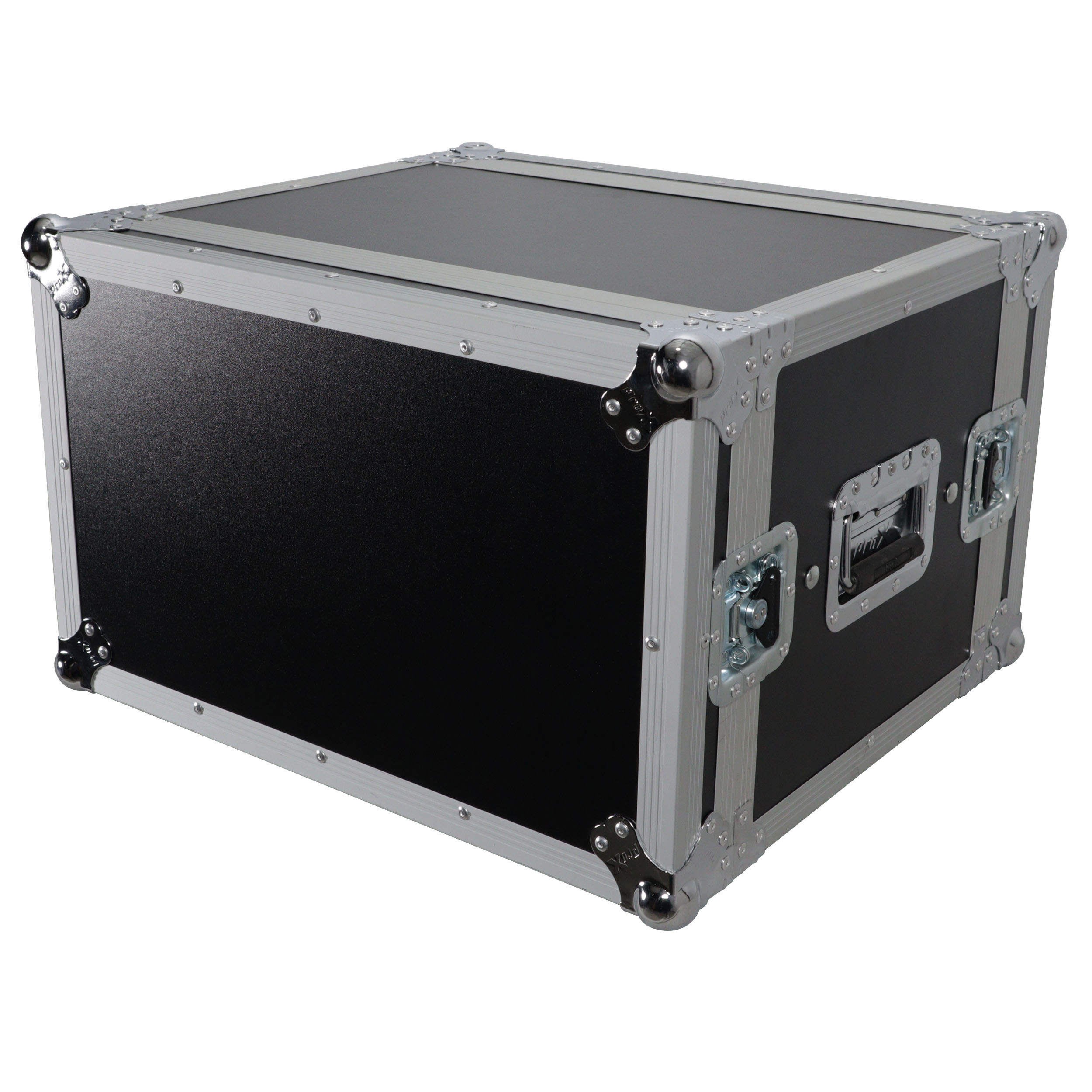

An ATA-style laminated shell, reinforced ball corners, recessed spring-action handles, and butterfly latches create a tough enclosure designed for repeated load-ins. Low-snag hardware avoids catching cable looms or soft cases during tight changeovers.
Rack Geometry & Gear Fit
The 14" rail-to-rail depth favors effects, DSP, and RF receivers while maintaining lid clearance for right-angle IECs and RJ45s. EIA-standard 19" spacing ensures broad compatibility across brands and categories.

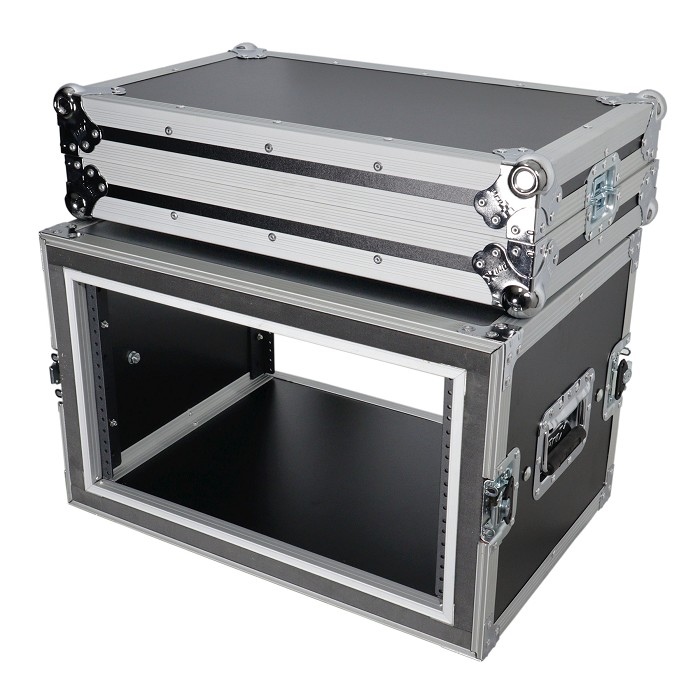

Access, Airflow & Serviceability
Front and rear lids remove quickly for setup and troubleshooting. Keep intake/exhaust paths clear for any heat-generating devices, and dress cables to eliminate stress on IECs, BNCs, and RJ45s when you button up after the show.
Cable Management & Power Strategy
Centralize mains on a rear strip/PDU (as your build allows), route signal on the opposite edge to minimize hum, and label rear I/O for low-light work so patches and swaps stay fast under show pressure.
How to Deploy in the Field
- Load order & balance: Place the heaviest unit lowest; distribute weight evenly front/back.
- Protect the isolation: Roll thresholds slowly and avoid drops so the shock mounts can work.
- Power first: Mount a rear power strip/PDU and route mains away from audio to reduce noise.
- Vent planning: Keep vents clear; add 1U space near the hottest devices if needed.
- Label rear I/O: Save minutes in dark booths and side-stage positions.
- Confirm lid clearance: Test-close lids with right-angle IEC/network plugs before show day.
Why Choose from AVMaxx
Chicago-proven shock rack builds. We configure compact, shock-isolated racks for mobile DJs, club installs, and touring crews that battle freight elevators, winter sidewalks, and tight booths. Our guidance reflects real venues and real timelines—fast patches, safe cabling, and reliable power.
Verified data, zero guesswork. We publish only current manufacturer details and field-tested practices so your rack rolls in clean and rolls out working—night after night.
Frequently Asked Questions — ProX T-6RSP14
What gear sizes fit this case?
Standard 19" rack-mount components across 6U of height. The internal rail-to-rail depth is 14", ideal for processors, effects, and RF receivers.
How does the shockproof design protect my equipment?
A floating inner frame absorbs bumps and vibration during transport, helping protect sensitive electronics and solder joints.
Is this a good choice for mobile DJs?
Yes. The compact depth and 6U footprint keep your DSP/RF kit protected without adding bulk to your cart or booth.
Will right-angle power and network plugs clear the lids?
The 14" depth and service-friendly design help accommodate right-angle connectors when dressed properly. Always test closure with your exact plugs.
Any deployment tips to maximize protection and airflow?
Mount heavier gear low, keep vents clear, secure cables for strain relief, and avoid hard impacts so the shock mounts can do their job.
Send us your DSP/RF list and venue profile—we’ll map power, airflow, and cabling so your Chicago load-ins are faster and safer.
