Chauvet Professional Rogue Outcast 2X Wash M IP66 Wash

Chauvet Professional Rogue Outcast 2X Wash M: IP66 RGBW Wash with Pixel Control and Marine-Grade Durability

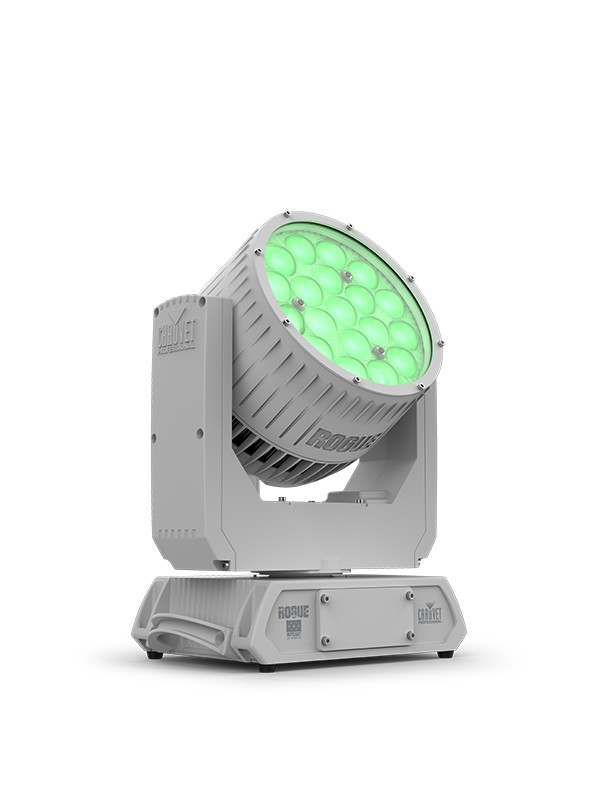

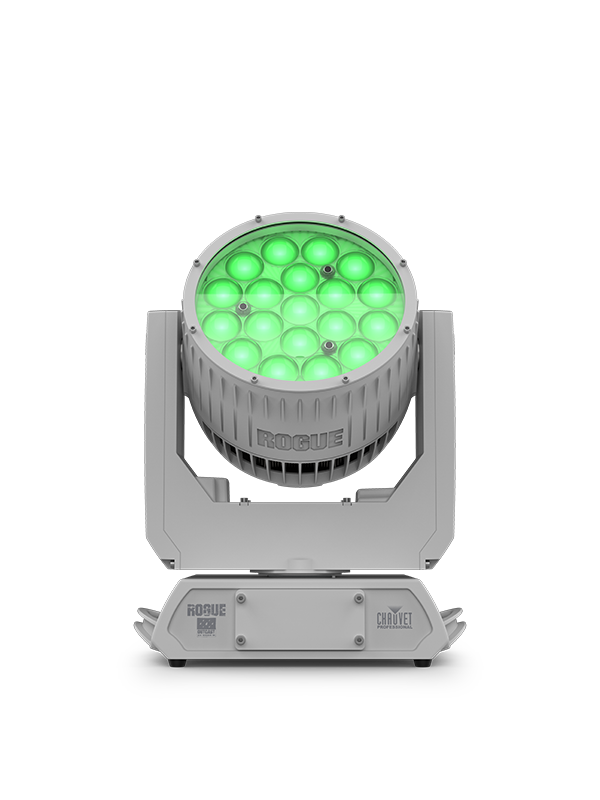

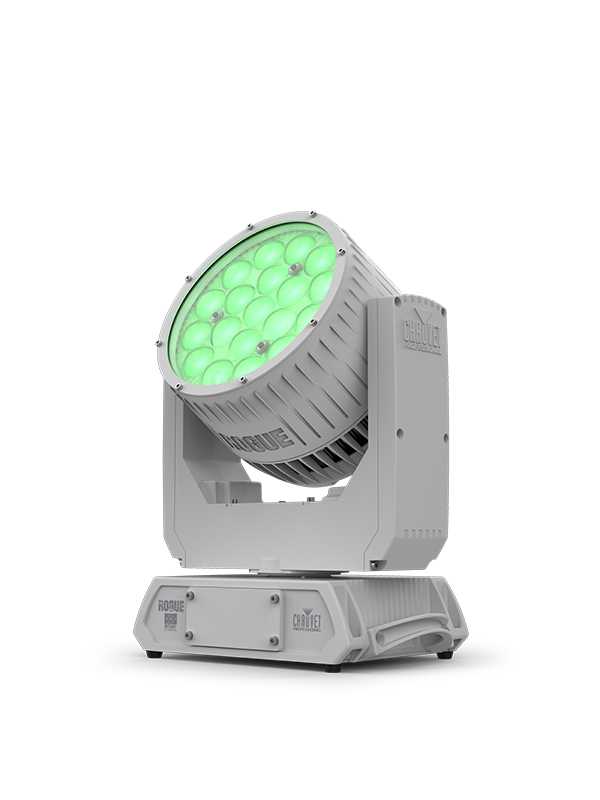

The Rogue Outcast 2X Wash M from Chauvet Professional is a fully featured IP66-rated RGBW LED yoke wash engineered for extreme environments—especially coastal and marine applications. Equipped with nineteen 25-watt RGBW LEDs and a rugged C5M-rated aluminum housing, this fixture delivers powerful output, precise color control, and smooth fades—even in corrosive or weather-exposed settings.

The unit’s 5-zone pixel control enables dynamic chase effects, custom color mapping, and media-style visual layering, while motorized zoom (7.9° to 63.7°) allows tight beam looks or wide flood washes with over 5,300 lumens of calibrated output. A suite of six dimming curves and selectable PWM frequencies (600 Hz to 15 kHz) make the 2X Wash M camera-ready and ideal for broadcast, streaming, and installation work.

With fast 540° pan and 270° tilt, full DMX and RDM support, and 8 selectable personalities (15–56 channels), the Rogue Outcast 2X Wash M is versatile enough for advanced tour rigs, long-term architectural installs, or marine deck lighting. Its included display cover protects the OLED interface during long-term outdoor deployment.

Real-World Applications and Lighting Roles:

• Marina or cruise ship lighting requiring C5M-rated fixtures
• Pixel-mapped LED wash for concerts, festivals, or broadcast
• Outdoor architectural lighting with full DMX/RDM control
• Permanent installs in high-humidity or salt-air environments
• Pixel-controlled eye candy wash for immersive scenic effects

Where This System Excels

• Marine-Grade Protection: C5M-rated paint and IP66 housing resist salt, humidity, and corrosion.
• 5-Zone Pixel Mapping: Create visual chases and advanced looks via discrete RGBW control.
• Wide Zoom Flexibility: Tight 7.9° beams to 63.7° wide floods from motorized zoom optics.
• Broadcast-Ready PWM: Camera-friendly dimming with selectable PWM up to 15 kHz.
• Full DMX + RDM Control: Compatible with pro show control systems, remote addressing, and advanced monitoring.
• Compact + Lightweight: 21.2 lb aluminum build with integrated rigging and outdoor-ready UI protection.

Control Modes for the Rogue Outcast 2X Wash M

The Rogue Outcast 2X Wash M supports an extensive control architecture built for professional environments. With eight DMX personalities ranging from 15 to 56 channels, users can choose from simplified control layouts or fully detailed pixel and color control schemes. Each mode includes fast, fluid pan/tilt motion and precision dimming behaviors across all color channels.

• DMX Channel Modes: 15CH, 17CH, 22CH, 23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH, 56CH
• Protocols Supported: DMX, RDM (remote addressing, monitoring, and error feedback)
• OLED Display: Sealed and outdoor-ready with simple menu navigation and lockout options
• Selectable PWM Frequencies: 600 Hz, 1.2 kHz, 2 kHz, 4 kHz, 6 kHz, 15 kHz
• Dimming Curves: 6 curve types for smooth fades and master/intensity control
• Pan/Tilt Ranges: Configurable: 180°, 360°, or 540° pan; 90°, 180°, or 270° tilt

Control is enhanced through a USB-C port for firmware updates and profile uploading, ideal for long-term installs or touring setups requiring regular fixture updates.

LED Output & Pixel Zoning in the Rogue Outcast 2X Wash M

The Rogue Outcast 2X Wash M is equipped with nineteen 25-watt quad-color RGBW LEDs, delivering a total output of 5,371 lumens in full-flood mode. Each LED operates at 1.5 amps and has an expected lifespan of 50,000 hours. The engine supports 5-zone pixel mapping, allowing users to drive discrete RGBW color values across grouped segments for high-impact chases, gradient transitions, and advanced visual effects.

Color temperature control is available in multiple DMX profiles, with selectable white points ranging from 2,800K to 10,000K and a calibrated 7,500K preset at full output. Six user-selectable dimming curves provide smooth control of fades, both for master intensity and individual color channels.

Optical Zoom System & Beam Behavior

Designed for full optical flexibility, the Rogue Outcast 2X Wash M includes a motorized zoom system spanning from 7.9° narrow beam to a wide 63.7° flood. This range supports tight mid-air beam work as well as expansive wash coverage across large stage or architectural surfaces.

The field angle stretches from 11.6° to 50.5°, with a measured cutoff range of 18.5° to 63.7°. At minimum zoom, the fixture achieves 7,632 lux at 5 meters, while maximum zoom yields 639 lux at 5 meters. Zoom transitions are smooth and fast, enabling dynamic range sweeps during live programming.

DMX Channel Modes & Trait Mapping

The 2X Wash M supports a versatile set of eight DMX personalities, ranging from simple 15-channel control to full 56-channel extended mapping. These modes unlock varying degrees of access to zoom, pixel zones, dimming curves, color macros, calibrated white control, and system settings.

• DMX Personalities: 15CH, 17CH, 22CH, 23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH, 56CH
• Control Protocols: DMX512, RDM
• Strobe Rate: 0–20 Hz via electronic shutter
• Standalone Color Mixing: Available across multiple modes
• Color Temp Presets: Enabled in 23CH and 55CH profiles

The fixture supports recallable custom programs, built-in macros, and channel-efficient layouts for compatibility with both complex and simplified show environments.

User Interface, PWM Frequencies & Firmware Tools

For field access and programming, the Rogue Outcast 2X Wash M features a weather-sealed OLED menu interface with intuitive navigation, password lockout, and full access to addressing, dimming, DMX mode, pan/tilt inversion, and display settings. An included removable display cover enhances visibility and protection during long-term outdoor use.

The fixture supports selectable PWM refresh rates of 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, and 15,000 Hz for compatibility with film, video, and broadcast camera systems. Dimming resolution is handled at 16-bit across all color channels and master dim, with six curve profiles to tailor fade response.

Firmware updates and personality uploads can be performed via the integrated USB-C port, streamlining maintenance and version control in touring or installed systems.

Marine-Grade Construction of the Rogue Outcast Series

Chauvet Professional’s Rogue Outcast 2X Wash M and Rogue Outcast 1 BeamWash M are purpose-built for marine and offshore environments, integrating ruggedized housings, environmental isolation, and long-term corrosion resistance. These features allow for consistent optical performance and mechanical stability in some of the most demanding deployment conditions in the industry.

• IP66-Rated Sealing: Both fixtures meet the IEC standard for total dust ingress protection and high-pressure water resistance from any direction, including direct jetting and heavy storms.
• GORE® Vent Integration: Each fixture includes membrane-based venting technology to equalize internal pressure and prevent condensation—critical for environments with rapid temperature shifts or high humidity.
• UV-Stabilized Black Housing: The matte black finish is engineered to withstand sun exposure, oxidation, and salt-laden air without fading, pitting, or surface breakdown.
• OLED UI with Weatherproof Buttons: The onboard menu interface is fully sealed, enabling reliable configuration even during active rainfall or spray exposure.
• Operational Temperature Range: Both fixtures are rated for use in extreme ambient conditions from -20°C to 45°C, ensuring thermal stability across cruise decks, resort installs, or oceanfront festivals.

The marine-grade Rogue Outcast M series gives production teams total confidence when rigging in salt air zones, open decks, or high-humidity outdoor venues—without compromising optical precision or structural longevity.

How to Deploy the Rogue Outcast 2X Wash M in the Field

Designed for flexible use in rugged environments, the Rogue Outcast 2X Wash M supports a wide range of deployment configurations. Its compact 21.2 lb aluminum housing and IP66 construction allow for mounting in exposed locations—whether truss, deck, or architectural surfaces. The included Omega brackets and Allen-key bolts provide fast and secure truss integration using compatible clamps such as the CTC-50HC or CTC-50HCN.

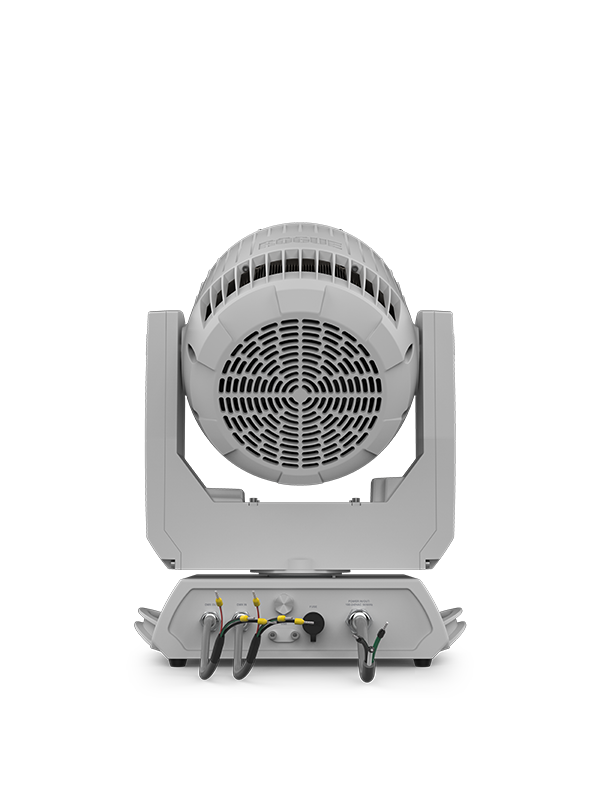

The fixture’s display cover ensures reliable menu access in rain, fog, or salt-heavy air, while its sealed cabling makes it well-suited for marine installs or long-term outdoor architectural projects. Data and power lines are termination-ready with bare-ended signal and AC cables to support custom wiring runs or weather-sealed junction systems.

With its wide zoom range and 5-zone pixel mapping, the 2X Wash M is equally effective in rigged clusters for high-impact mid-air effects, or as a standalone wash in uplight or ground-support roles. Multiple pan/tilt range options (up to 540°/270°) allow for tight or expansive sweep programming, depending on the rig’s throw and trim height.

Why Choose the Rogue Outcast 2X Wash M from AVMaxx

At AVMaxx, we understand the demands of real-world installs—especially when they involve coastal exposure, cruise ships, festivals, or broadcast-ready lighting. The Rogue Outcast 2X Wash M isn’t just IP66-rated—it’s built for long-term survival in punishing outdoor environments. We’ve deployed these fixtures in real marine environments and know how well the C5M coating holds up against salt air, humidity, and daily weather cycles.

Our team doesn’t just ship boxes—we help production teams, LDs, and installers spec zone-controllable washes that can thrive outside. Need to pixel-map your facade? Match PWM to your camera system? Patch multiple DMX personalities across a broadcast rig? We’ve done it—and we’re here to help you get it right from the start.

Every Rogue Outcast 2X Wash M we ship is backed by expert-level support, deployment knowledge, and trusted Chauvet Professional documentation.
